eGauge: IMT Weather Station
Summary:
This guide provides information on the installation and integration of IMT weather stations (model Si-RS485TC-2T-v-MB) for projects using eGauge metering.
Last Revised Date: 7/15/2025
Last Revised by: Nicholas Amodei
Installation and Integration
eGauge fully supports this hardware and provides detailed instructions for this process on their website HERE.

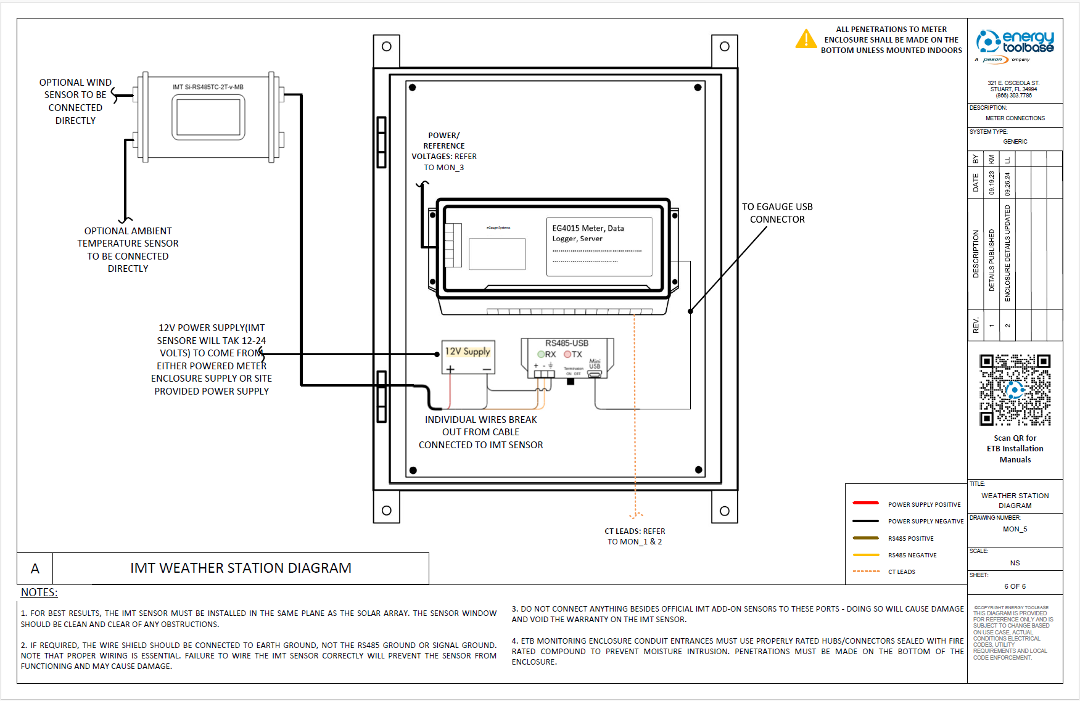

In addition, Energy Toolbase provides a single line diagram to help facilitate installation and integration with our hardware (downloadable version attached below):
FAQ:
- IMT weather stations are not supplied by ETB and must be purchased by the customer, this can be done on the eGauge website HERE.
- Wind and ambient temperature sensors are available in addition to the irradiance sensor.
- Customer supplied power supply for the RS485 to USB adapter is required.
- This can be easily done by either purchasing an ETB powered meter enclosure or wiring a standard 120V outlet to the enclosure.
- Any questions regarding the IMT weather station or associated sensors are best directed to the OEM:
