Field Recovery Kit - Porkchop
1.0 Field Recovery Kit Components
The field recovery toolkit will be shipped with all the required components to make it functional. Below is a list of the components within the Porkchop Field Recovery Kit. Please notify ETB immediately if you find any of the items below missing from the kit when you receive it.
PORKCHOP Components
|
|
|
|
|
2.0 Detailed Instructions
Porkchop
This recovery kit will be delivered in a case - shown in the picture below. This kit requires an existing EMS with power and internet connections in good condition for proper use.

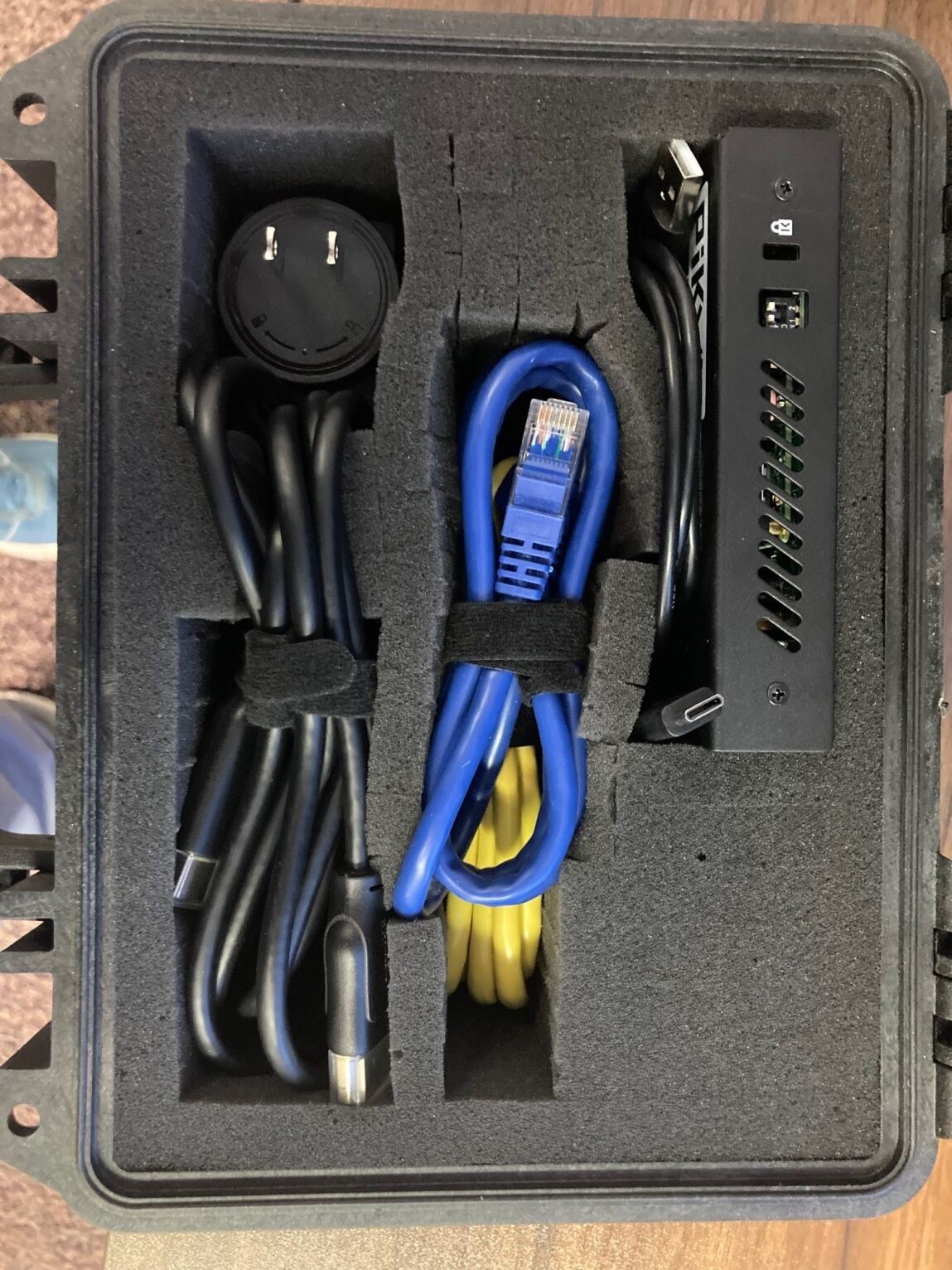

Figure 1: Porkchop Recovery Kit
The following steps outline how to set up the kit before ETB can use it for troubleshooting:
- Bring out the piKVM with its power adapter and set it aside.
- Plug in the video cable to the piKVM and the other end into the EMS.
- Plug the ethernet cable that is providing internet on site into the LAN 1 port on the piKVM.
- Plug an ethernet cable from any of the extra LAN ports on the piKVM to LAN port 1 of the EMS.
- Plug the piKVM into power.
When the connections are completed correctly, they should look like the image below. After the setup is complete, call the ETB Engineering Support line on 1 (866) 415-1445 (Toll Free). ETB Engineering will begin the troubleshooting process.

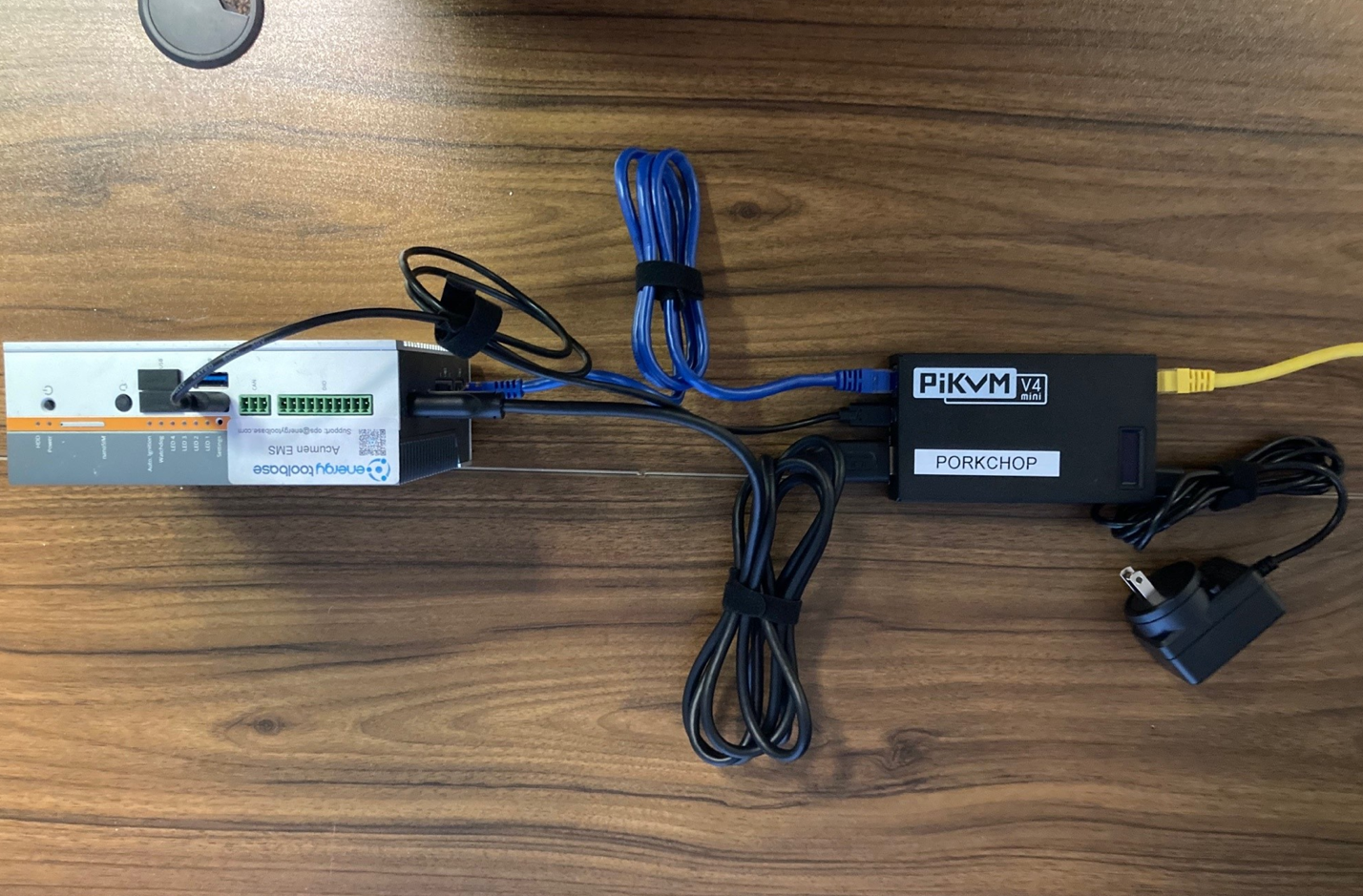

Figure 2: Properly Connected Field Recovery Kit - Porkchop
