Field Recovery Kit - Doug
1.0 Field Recovery Kit Components
The field recovery toolkit will be shipped with all the required components to make it functional. Below is a list of the components within the Doug Field Recovery Kit. Please notify ETB immediately if you find any of the items below missing from the kit when you receive it.
DOUG Components
|
|
|
|
|
|
|
|
|
|
|
2.0 Detailed Instructions
Doug
This recovery kit will be delivered in a case - shown in the picture below. The spare Karbon EMS in this kit is only to be used upon certification that the onsite Karbon 300/410 is beyond recovery.

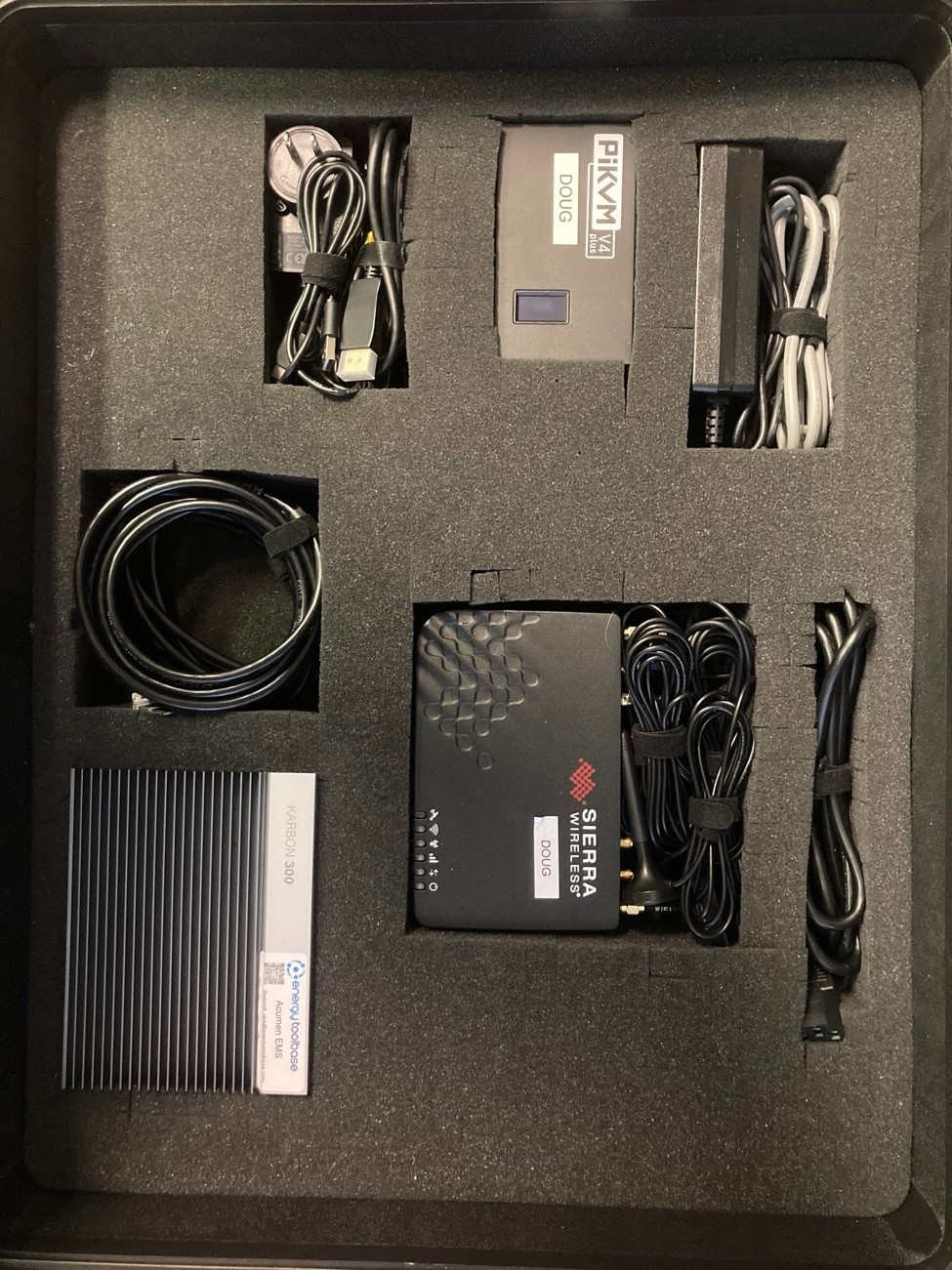

Figure 1: Doug Recovery Kit
The following steps outline how to set up the kit before ETB can use it for troubleshooting:
- Remove the Sierra Wireless modem with its power cable and set it aside leaving the antennas connected. Plug an ethernet cable into one of the LAN ports on the modem.
- Plug the other end of this ethernet cable into LAN 1 port of the EMS on site.
- Connect the power adapter (the one on the right of the piKVM in the picture above) to both the Sierra Wireless modem and the EMS. Plug into power.
- Bring out the piKVM and its power adapter (the one to the left of the picture above) and set it aside.
- Plug in the video cable to the piKVM and the other end into the EMS.
- Plug an ethernet cable from LAN port 1 on the piKVM to a LAN port on the Sierra Wireless modem.
- Plug the piKVM into power.
When the connections are completed correctly, they should look like the image below. After the setup is complete, call the ETB Engineering Support line on 1 (866) 415-1445 (Toll Free). ETB Engineering will begin the troubleshooting process.

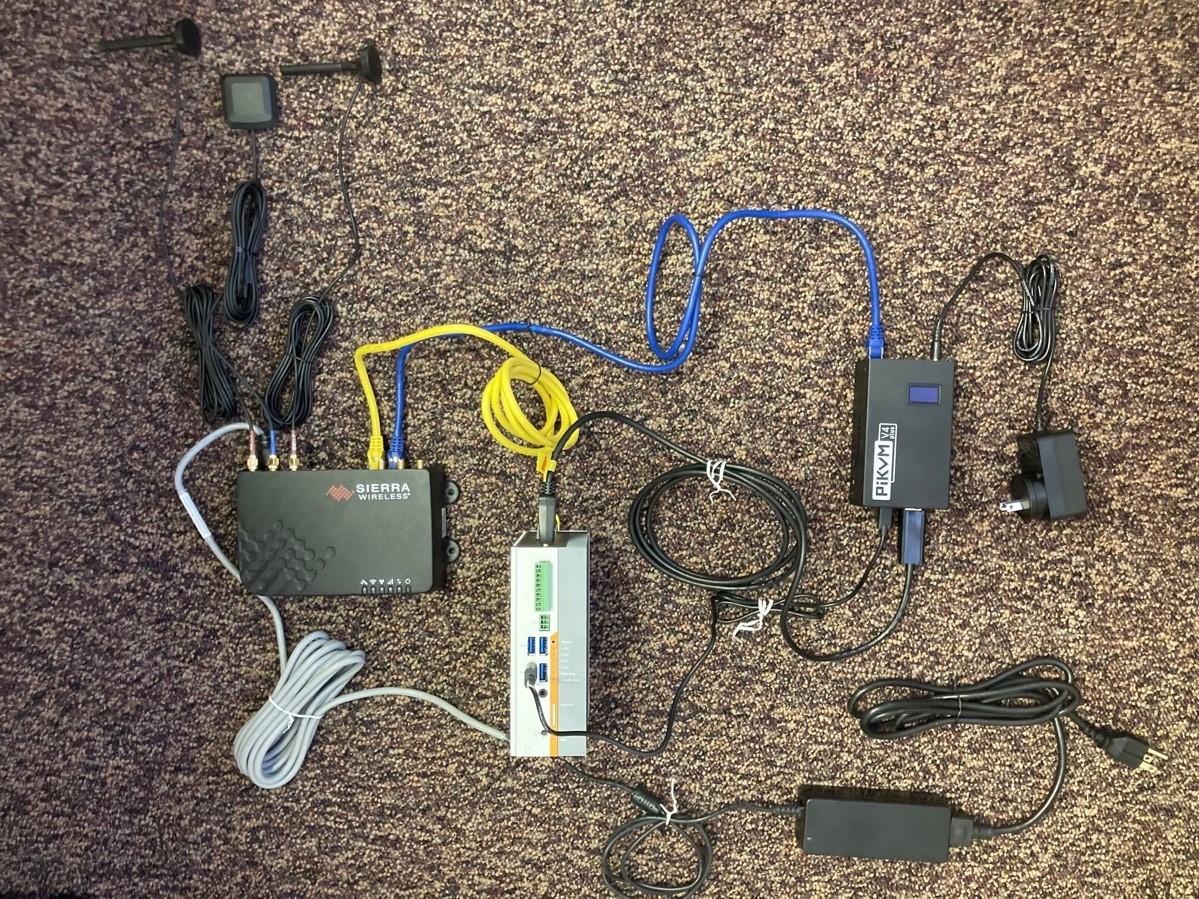

Figure 2: Properly Connected Field Recovery Kit - Doug
