Socomec SUNSYS HES IoT Reset Procedure
Summary:
Per Socomec, many BESS alarms/alerts can be resolved by power cycling the Automation Box.
SUNSYS HES L

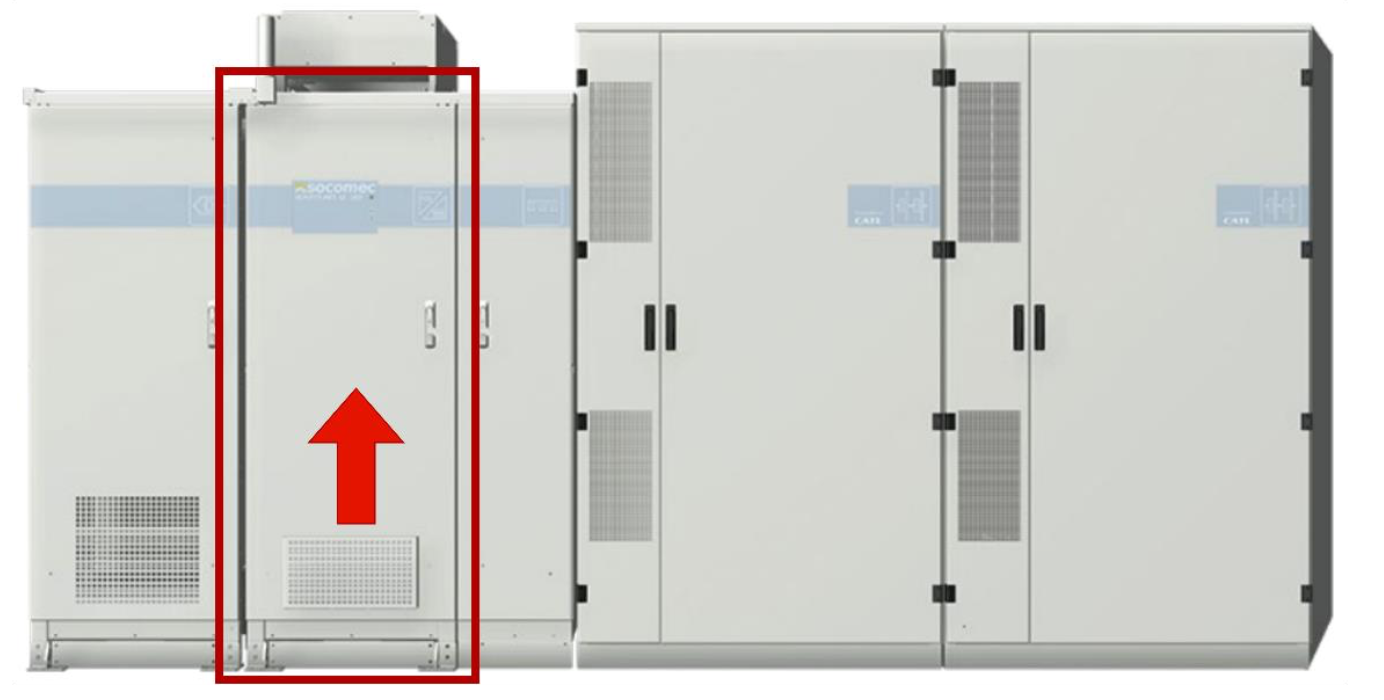

- Open the Converter Cabinet (C-Cab) door.

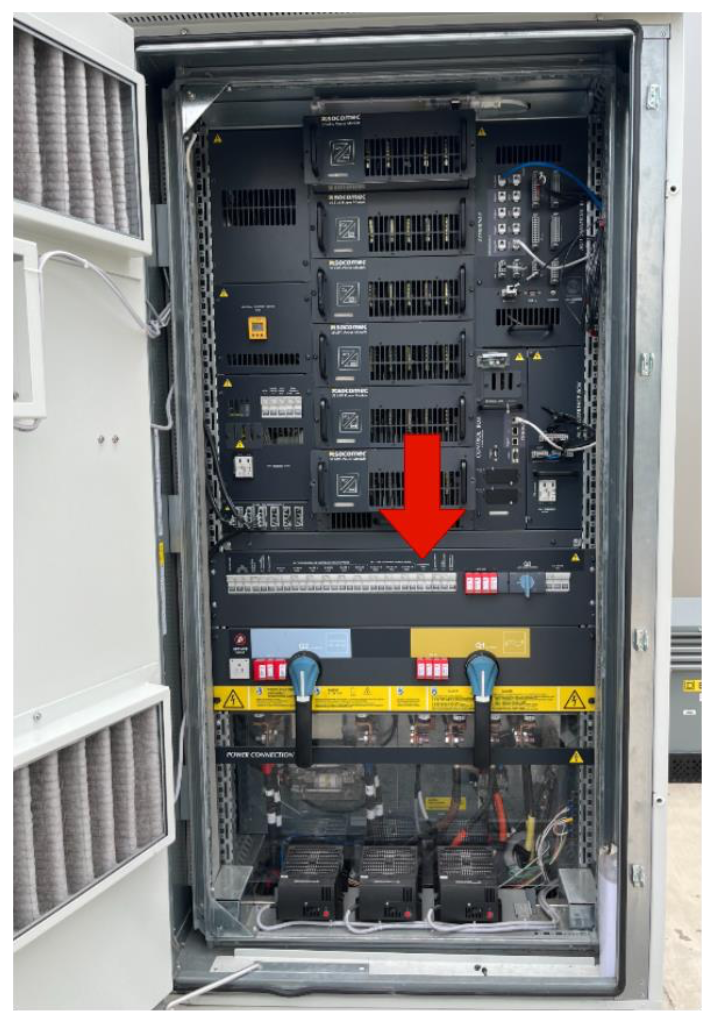

- Open the F23 fuse block “Automation Box”.
- After 10 seconds, close the F23 fuse block.
- Close the C-Cab door.
SUNSYS HEL XL
- Open the Converter Cabinet (C-Cab) door.

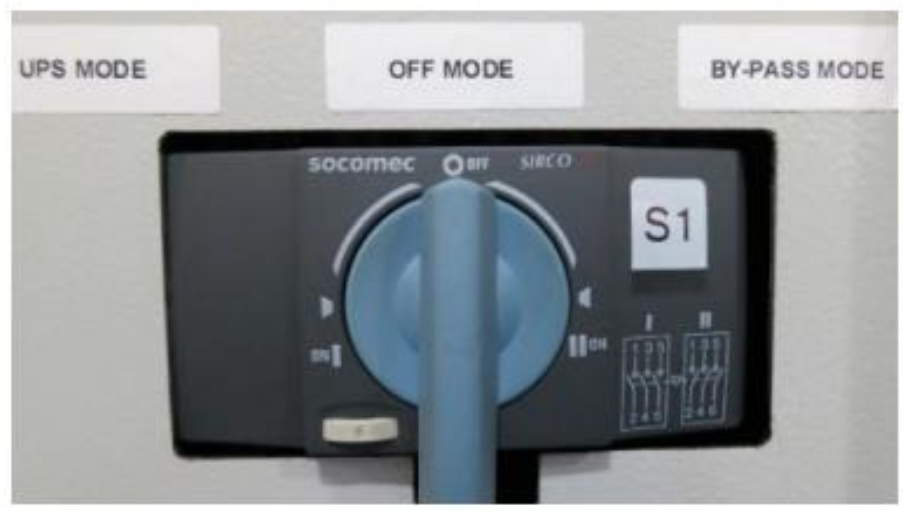

- Turn the S1 switch to the OFF position.
- After 10 seconds, return the S1 switch to the position in which it was found.
- Close the C-Cab door.
