Weather Station Overview
Overview

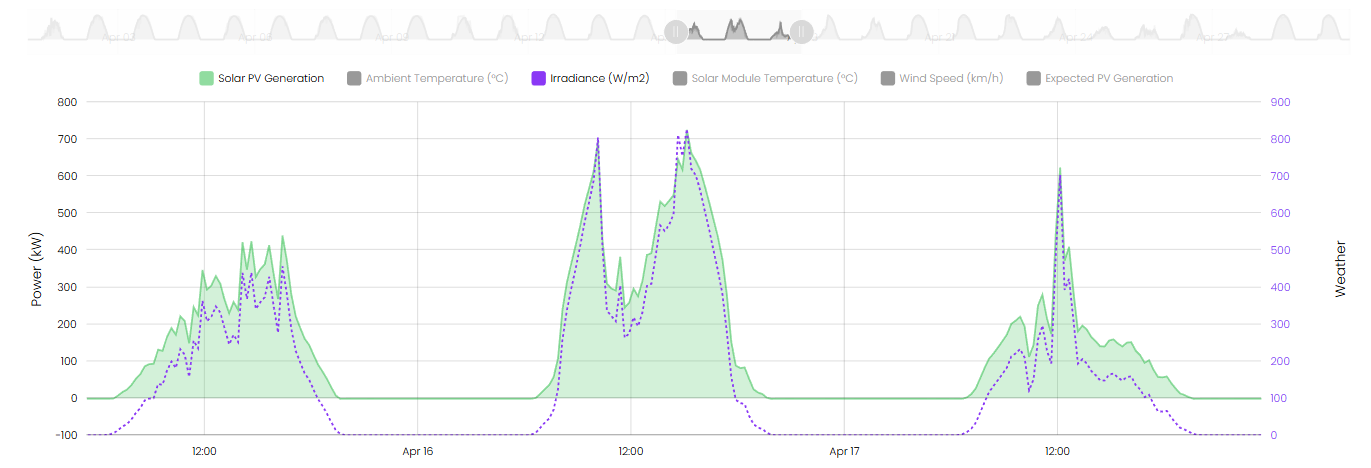

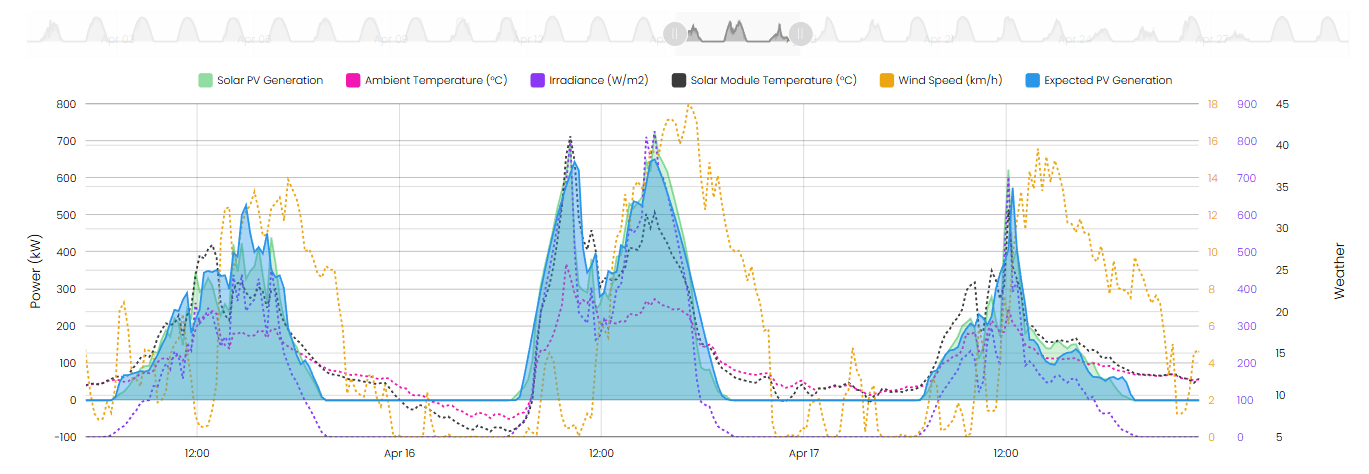

ETB Monitor supports weather station integration through a set of components that measure irradiance, solar module temperature, ambient temperature, and wind speed. The irradiance sensor acts as the hub for the other sensors and provides critical data for PV monitoring.
Note: ETB does not supply these components directly, but can help provide vendor information.
Integrated Weather Components
| Product | Description |
| IMTIRR – IMT Irradiance Sensor | IMT Irradiance Sensor (Si-RS485TC-2T-v MB). Supplies both irradiance and solar module temperature readings. Web Page: https://imt-solar.com/en/products/si-sensor-reference-cell-for-pv-monitoring/ Data Sheet: https://imt-solar.com/wp-content/uploads/Si-Sensor_DS_EN.pdf Instruction Sheet: https://imt-solar.com/wp-content/uploads/Si-Sensor-RS485_IM_2025-05_EN.docx |
| IMTAMB – IMT Ambient Temp Sensor | IMT Ambient Temperature Sensor (Si-RS485TC). Web Page: https://imt-solar.com/en/products/ambient-temperature-sensor/ Data Sheet: https://imt-solar.com/wp-content/uploads/Ta-Sensor_DS_EN.pdf Instruction Sheet: https://imt-solar.com/wp-content/uploads/IS_Ta-ext-RS485_EN_2025-02.docx Optional Radiation Shield: https://imt-solar.com/wp-content/uploads/Shield-Tamb-Si_IM_EN.pdf |
| IMTWIN – IMT Wind Sensor | IMT Wind Sensor (v-Wind-si). Web Page: https://imt-solar.com/en/products/other-meteorological-sensors/ Data Sheet: https://imt-solar.com/wp-content/uploads/Sensor-Accessories_EN.pdf Instruction Sheet: https://imt-solar.com/wp-content/uploads/Vwind-Si_IM_EN.pdf |
| USB485 – USB to RS485 Converter | eGauge USB to RS485 Converter (with accessories). Used to connect the weather station to the eGauge meter. Web Page: https://www.egauge.net/products/usb485/ |
