Connecting an eGauge to ETB Monitor

Prerequisite: Make sure your eGauge is compatible with ETB Monitor.

Option 1 - If this is the first eGauge meter you have shared with Energy Toolbase:

1. Log in to the eGauge portal.
2. Navigate to the portfolio page.

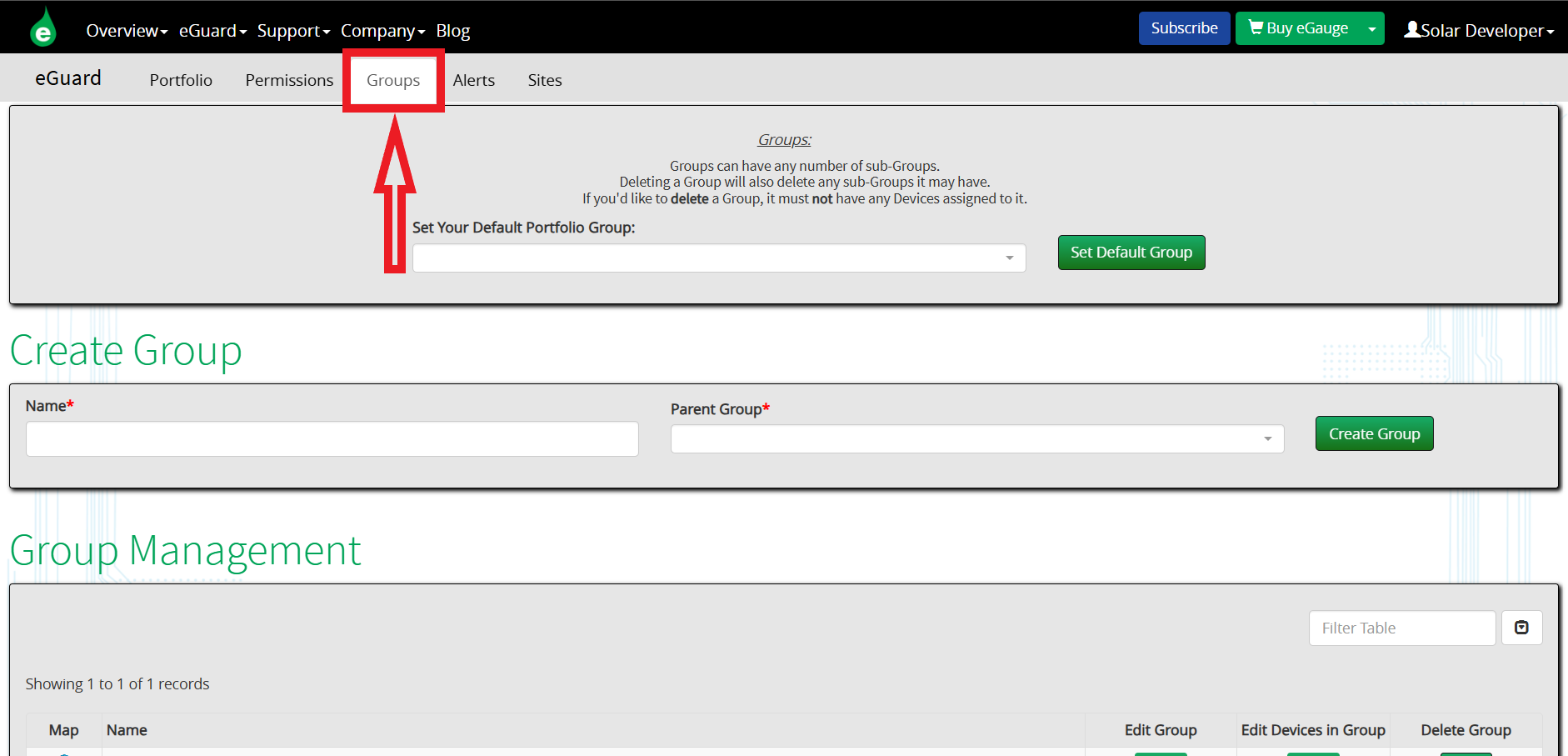

3. Click Groups
4. Create a Group for Energy Toolbase
   • For the Name enter “Energy Toolbase”.
   • Select any parent group.
   • Click Create Group.
5. Add your eGauge to the Energy Toolbase Group

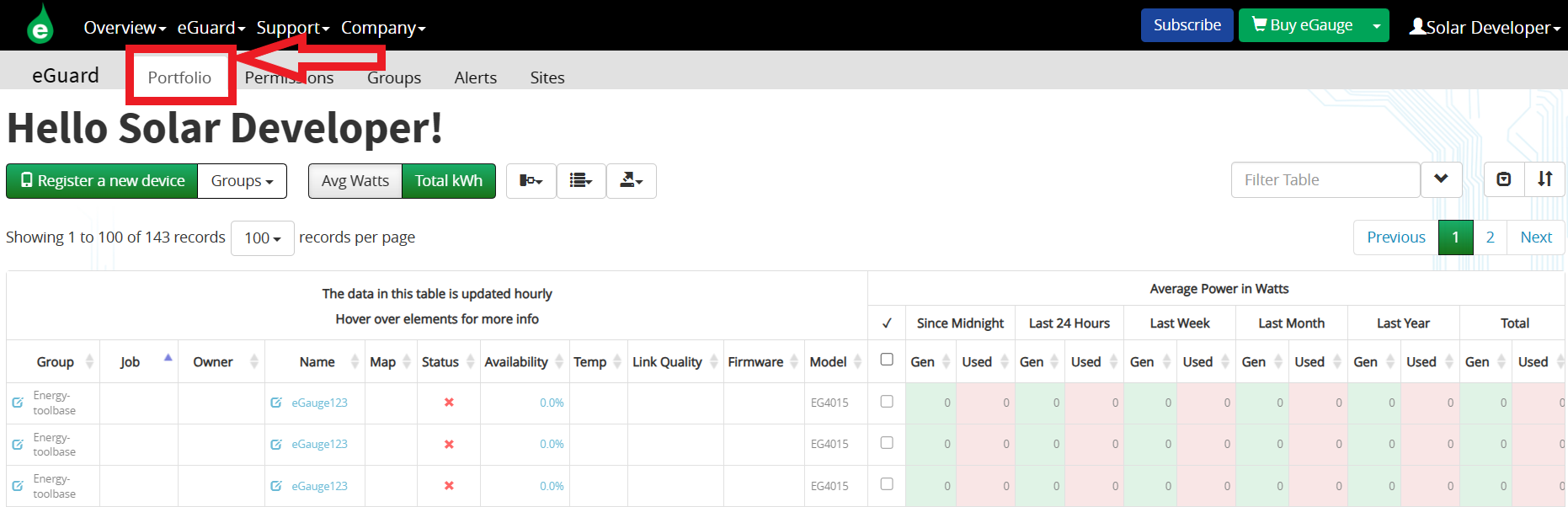

   • Navigate to the portfolio page.

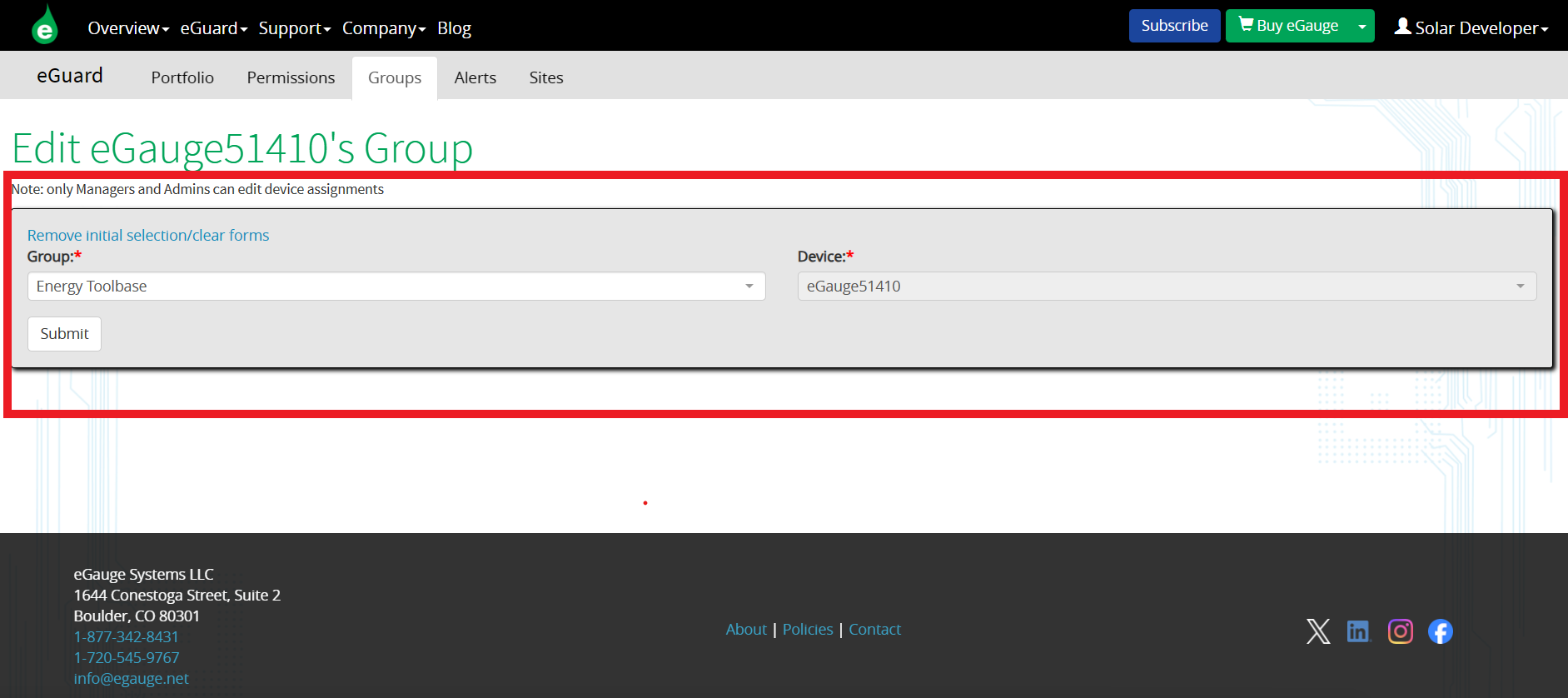

   • Click the edit icon in the Group column for the eGauge you would like to connect to ETB Monitor.
   • Select Energy Toolbase in the Group dropdown.
   • Click Submit.
6. Let Energy Toolbase know that you are ready to share your eGauge access.
   • ETB will need the eGauge login name of the user who manages the Energy Toolbase group of your eGauges.
7. Approve Energy Toolbase to access the Energy Toolbase Group of your eGauges.

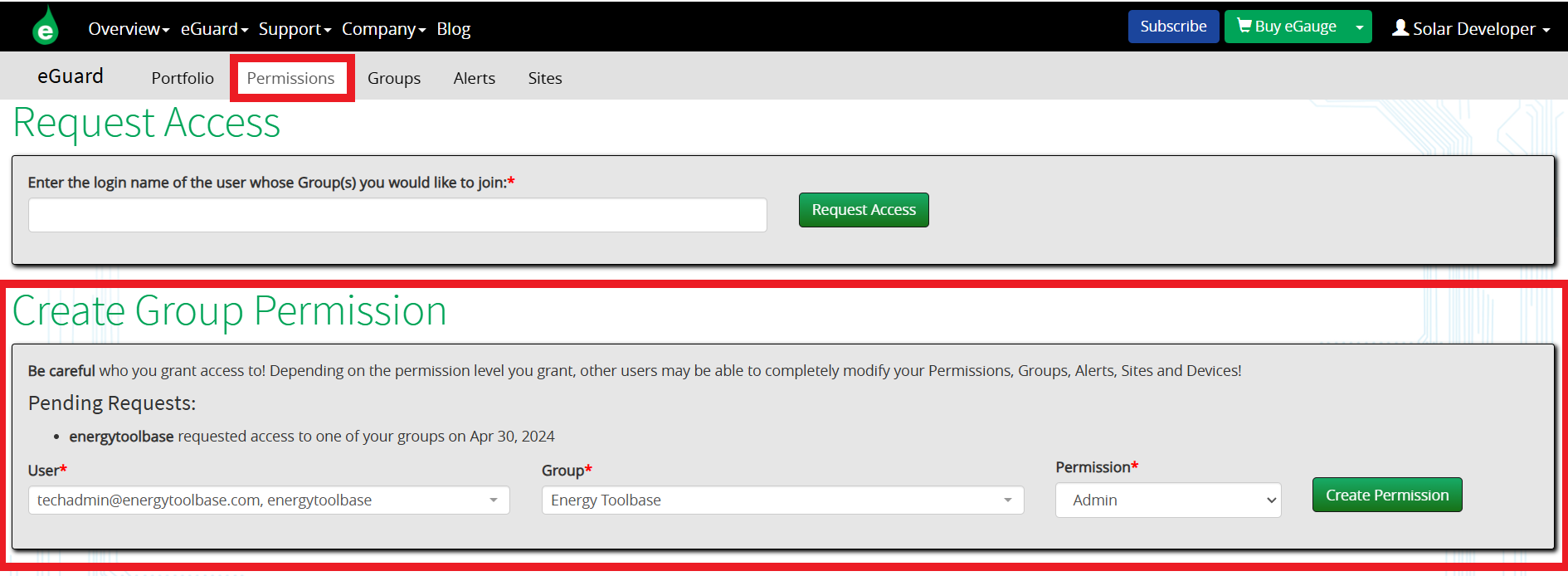

   • Navigate to the permissions page.
   • Under the Create Group Permission, you will see a pending request from Energy Toolbase.
   • In the Create Group Permissions section, select Energy Toolbase as the User, select Energy Toolbase as the Group, and select Admin as the permission.
   • Click Create Permission.
8. Let Energy Toolbase know that you have approved ETB access the eGauge.

Option 2 - If you have shared an eGauge with Energy Toolbase before, and are sharing another eGauge:

1. Add the new eGauge to the Energy Toolbase Group
   • From the portfolio view, click the edit icon in the Group column.
   • Select Energy Toolbase in the Group dropdown.
   • Click Submit.
   • Let Energy Toolbase know that you have added the new eGauge.
